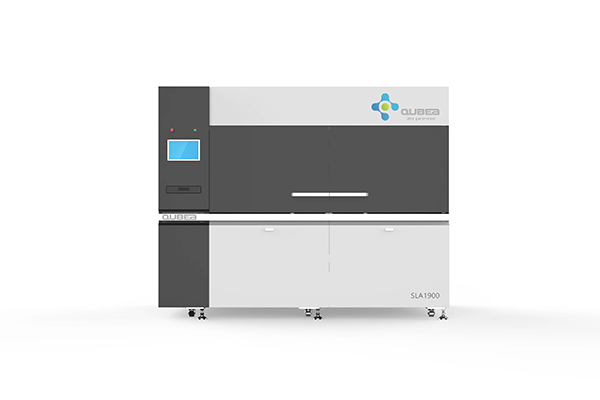

QUBEA INDUSTRIAL SLA 1900 (customized)
QUBEA SLA1900 is a customized industrial grade printing equipment. Assembly of high precision Dynamic Focusing System, Dual Scanning Galvanometer. The roundness of the spot can reach more than 90% in each position to ensure the printing accuracy of each position.
KEY PARAMETER
Max.Buli Size:：
1900mm(X)*1000mm(Y)*800mm(Z)
Recoating Precision:
0.1mm-0.15mm （Quick Build：）； 0.05mm-0.1mm（Precise Build：）
Production Speed：150~500g/h（Super ×2 |Dual Galvanometer）
Light Spot (diameter @ 1 / e²):
0.1 ~ 0.80mm (Dynamic focus)
QUBEA INDUSTRIAL SLA 1800
QUBEA SLA1800 is a new industrial-grade printing equipment. Assembly of high precision Dynamic Focusing System, Dual Scanning Galvanometer. The roundness of the spot can reach more than 90% in each position to ensure the printing accuracy of each position.
KEY PARAMETER
Max.Buli Size:：
1800mm(X)*850mm(Y)*600mm(Z)
Recoating Precision:
0.1mm-0.15mm （Quick Build：）； 0.05mm-0.1mm（Precise Build：）
Production Speed：150~500g/h（Super ×2 |Dual Galvanometer）
Light Spot (diameter @ 1 / e²):
0.1 ~ 0.80mm (Dynamic focus)
QUBEA INDUSTRIAL SLA 800
The QUBEA SLA 800 is equipped with a dynamic focusing system and a fully automatic lifting vat, And the design of separating the vat from the metal frame can effectively prevent the creep of the machine due to the gravity pressure, and at the same time, it is convenient to maintain the equipment and replace the material.
KEY PARAMETER：
Max.Buli Size:
800mm(x)*800mm(y)*450mm(z)
Recoating Precision：
0.1mm-0.15mm （Quick Build：）；
0.05mm-0.1mm（Precise Build：）
Light Spot (diameter @ 1 / e²):
0.1mm-0.8mm
QUBEA SLA 600
The QUBEA SAL 600 equipment features excellent stability, high versatility and flexibility. The printing platform of SLA 600 is suitable for the printing of most workpieces, and the assembly of dynamic focusing system or variable-spot system can be flexibly selected according to the requirements.
KEY PARAMETER：
Max.Buli Size: 600mm(x)*600mm mm(Y)*400mm(Z)
Recoating Precision：
0.1mm-0.15mm （Quick Build：）； 0.05mm-0.1mm（Precise Build：）
Light spot (diameter @ 1 / e²):
0.10 ~ 0.16mm (Normal) 0.10 ~ 0.80mm (Dynamic focus)
QUBEA INDUSTRIAL SLA 450
The QUBEA SLA 450 has high precision and the resolution of galvanometer scanner can reach 0.008mm/Step. In addition to the standard capacity of 120kg/vat, it can also customize a 4kg/10kg/60kg small vat that supports rapid disassembly for material development or product testing.
KEY PARAMETER：
Max.Buli Size:
450mm(x)*450mm(Y)*350mm(Z)
LASER SCAN SYSTEM：
Single Spot，INNVO Laser
Resolution of Galvo Scanner：
0.008mm/Step
QUBEA INDUSTRIAL SLA 300
QUBEA SLA 300 is a high precision printing equipment for dental applications. The resolution of galvanometer scanner is up to 0.005mm/Step, which is suitable for printing high-precision products. Super small body, weight only 600KG, easy to transport, and small area, can be placed flexibly.
KEY PARAMETER：
Machine Dimension:
957mm(w)*894mm(d)*1915mm(h)
Max.Buli Size：
300mm(x)*300mm(Y)*250mm(Z)
LASER SCAN SYSTEM：
Single Spot，INNVO Laser
Resolution of Galvo Scanner：
0.005mm/Step
Customized equipment
Industry customization:
Relying on rich experience and professional team to customize exclusive equipment according to customers’ industry characteristics and needs.
Size customization:
According to the needs to customize different sizes 3d printing equipment.
